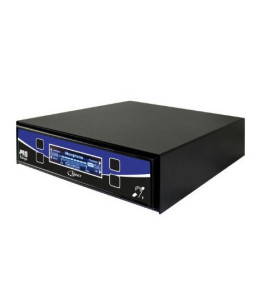

PRO5/SD Professional Loop Amps
A range of high performance free-standing constant current loop amplifiers.
- Intuitive graphical interface allows simple set-up of input levels, output current, phantom power and metal compensation.
- 200m2, 500m2 or 1000m2 coverage (model dependent).
- 1 x mic with switchable phantom power input and 1 x line input.

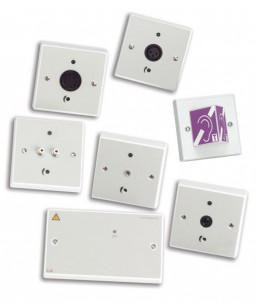

- Outreach connector allows up to 10 of our revolutionary audio input utility plates to be added
- Anti-tamper lock function prevents unauthorised adjustment of system settings
- Class D output stage for maximum efficiency and very high output
- Superior analogue audio processing with a powerful CPU and cutting-edge technology provide life-like speech and frst class music reproduction
- Short circuit protection against loop faults for increased reliability
- Fault relay & graphical display provide clear indication of operation and fault status
- Industry leading dual action automatic gain control compensates for poor microphone technique
- Line level output for recording or daisy-chaining multiple units to cover larger areas.
- Exceeds the requirements of PD IEC TR 63079 & EN 60118-4 when correctly installed and complies with EN 62368-1.
- Designed and manufactured in the UK.
Specs
- Induction Loop Type:
- Perimeter (A3). Free standing.
- Coverage:
- 200m2 (PRO5/SD); 500m2 (PRO7/SD); 1000m2 (PRO11/SD)
- Dimensions:
- W 218 x H 67 x D 280mm.
- Construction & finish:
- Mild steel zintec, 1mm thick, black powder coated, IP40
- Inputs:
- 1 x Mic with switchable 12V phantom power, 1 x line, 1 x Outreach connector
- Indicators:
- Graphical display with level, peak and limit indicators, Mic, 12V, Line, Metal, Outreach, Lock, Loop, Fault, Hot and Power
- Controls:
- Line Input, Microphone, 12V Phantom, Outreach, Metal Compensation, Loop
Options
- PRO5/SD:
- 200m2 Professional Free standing Hearing Loop Amplifier - 4.75 Amp
- PRO7/SD:
- 500m2 Professional Free standing Hearing Loop Amplifier - 7.5 Amp
- PRO11/SD:
- 1000m2 Professional Free standing Hearing Loop Amplifier - 11 Amp
- PDA/RM3:
- Optional 19 inch rack mount kit for use with PRO5/SD, PRO7/SD or PRO11/SD amplifiers
PRO5/SD, PRO7/SWD, PRO11/SD
