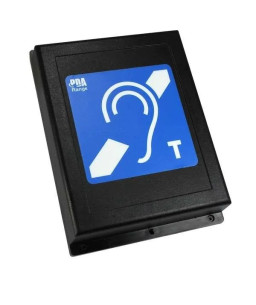

PDA103i Intercom Loop System

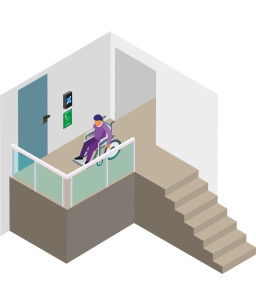

  • A self-contained hearing loop system specifically designed to integrate with disabled refuge, door entry and intercom help points.
  • Helps satisfy the accessibility and integrated loop requirements of the Equality Act and the 2018 revision of BS 8300.
  • Housed in an attractive surface-mounting IP65 rated enclosure for use in indoor or outdoor areas.
  • Adjustable controls allow the amplifier’s input and output stages to be set to suit the exact characteristics of the application.
  • Includes internal Limit, Peak, Loop Fault and Power On indicators.
  • Exceeds the requirements of PD IEC TR 63079, BS7594 & EN60118-4 when correctly installed.

Specs

Hearing Loop Type:
Wall mountable. Plugtop mains lead supplied.
Coverage:
1.2m2
Dimensions:
220W x 290H x 100D mm (including controls). Weight: 0.8Kg
Inputs:
1 x 3.5mm mic. socket; 1 x 3.5mm line level socket, 1 x Outreach socket
Indicators:
Limit; Peak; Loop Fault; Power On.
Controls:
Mic; Line; Outreach; Metal Compensation; Loop Drive (Level)
IP Rating:
IP65
PDA103i

Specific References

Download

Assistive Listening Systems

An overview of SigNET's assistive listening systems - DML055800 Rev 1

Download (4.51MB)

AFILS Test Certificate

Test Certificate for AFILS - DCM0004008 Rev 0

Download (387.76KB)

PDA103i Instructions

PDA103i Installation Instructions - DAU0001103

Download (1.01MB)
