PDA103L/R Small Room Loop Kit

Two variants available, each containing:

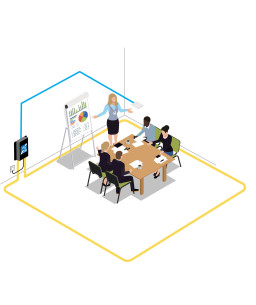

  • Everything you need to create a high quality hearing loop system for a room up to 50m2 (7m x 7m)

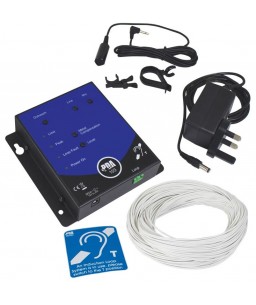

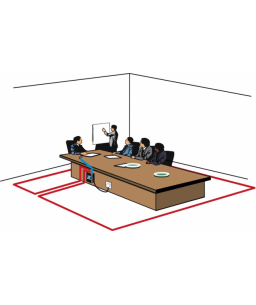

  • PDA103L kit ideal for small meeting rooms, council chambers, doctors' surgeries, etc.

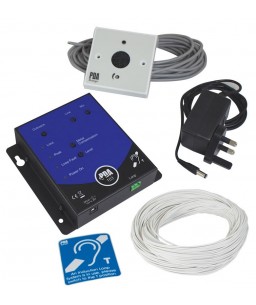

  • PDA103R kit ideal for small room applications where equipment needs be mounted above suspended ceilings, etc.
  • Note that a Domestic TV/Music Lounge kit c/w digital TOS-link connector is also available – see our separate PDA103S listing for details
  • PDA103 amplifier includes a 3.5mm microphone input, a line level input and an 'outreach' socket
  • Metal compensation control helps improve intelligibility in rooms with high metal content
  • Adjustable mic, line level and 'outreach' controls.
  • Drive (level) control allows the amplifier's output stage to be set-up to suit the exact characteristics of the application.
  • State-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks
  • Limit, Peak, Loop Fault and Power On indicators
  • Designed to be wall-mounted using the keyholes provided
  • Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed


Hearing Loop Type:
Wall mountable. Plugtop mains lead supplied.
Amplifier dimensions:
W 135mm x H 130mm x D 35mm (including controls). Weight: 380g (amplifier only).

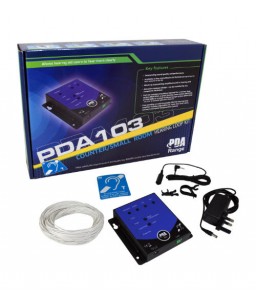

Kit box dimensions:
W 340 mm x H 250mm x D 70mm
1 x 3.5mm mic. socket; 1 x 3.5mm line level socket, 1 x Outreach socket
Limit; Peak; Loop Fault; Power On.
Mic; Line; Outreach; Metal Compensation; Loop Drive (Level)

Specific References


Assistive Listening Systems

An overview of SigNET's assistive listening systems - DML055800 Rev 1

Download (4.51MB)

AFILS Test Certificate

Test Certificate for AFILS - DCM0004008 Rev 0

Download (387.76KB)

PDA103 Instructions

PDA103C/L/R/S Installation & User Instructions - DAU0000103 Rev 7

Download (2.06MB)
