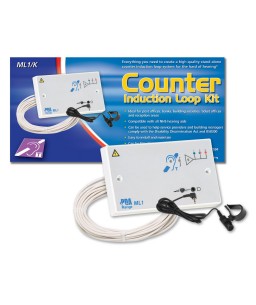

ML1/K Counter Hearing Loop Kit

Everything you need to create a high quality stand alone counter hearing loop system for the hard of hearing.

  • Ideal for banks, post offices, small meeting rooms, reception desks, ticket booths and any other application requiring restricted or small area coverage
  • Requires no specialist audio experience or connectors – can be fitted by any competent electrician
  • Space-saving double-gang wall-mounting amplifier fits standard UK 25mm back boxes (requires fixed mains wiring)
  • Omni-directional AMT microphone (supplied) plugs directly into 3.5mm socket on the amplifier’s front
  • Line/outreach socket also provided (max 3 outreach plates per system)
  • User-adjustable mic. sensitivity and engineer-adjustable loop drive and input level controls
  • Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed

Specs

Induction Loop Type:
Wall mounting (requires fixed mains wiring and a 25mm back box)
Coverage:
1.2m2
Dimensions:
W 143 x H 83 x D 32mm; 300g (amplifier only)
Inputs:
1 x 3.5mm remote mic. socket; 1 x Line/Outreach socket (max. 3 Outreach plates per ML1)
Indicators:
Input level; power on; loop drive meter
Controls:
Mic. input level, line input level; loop drive
Kit content:
ML1 amplifier; AMT microphone; TX2 pre-formed counter loop; 'AFILS fitted' sticker
ML1/K

Specific References

Download

Signet Afils Guide

SigNET loop guide overview

Download (5.18M)

AFILS Test Certificate

Test Certificate for AFILS

Download (387.76k)

ML1/K1instructions

Mini hearing loop amplifier installation instructions

Download (105.93k)
